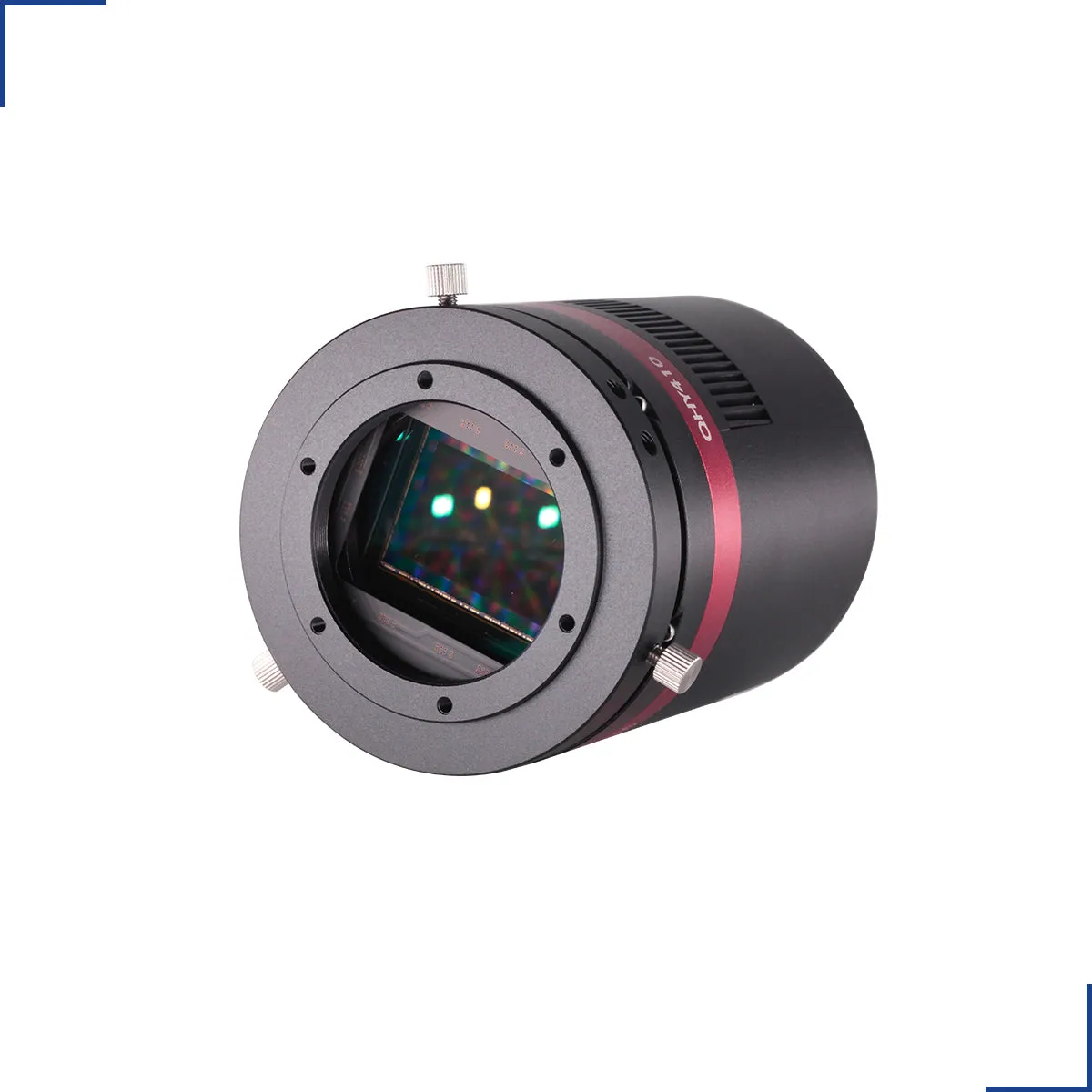

QHYCCD QHY600PH: High-Performance CMOS Astrophotography Camera
Key Features:
-
Advanced Sony IMX455 Sensor: The QHY600 Series utilizes the Sony IMX455 BSI full-frame sensor with 3.76um pixels and native 16-bit A/D conversion, available in both monochrome and color versions.
-
Ultra-Low Dark Current: Boasts extremely low dark current (0.002e/p/s @ -20C) thanks to Sony’s Exmor BSI CMOS technology.
-
Zero Amplifier Glow: The QHY600PH camera ensures clear imaging without amplifier glow interference.
-
High Sensitivity and Speed: Delivers only one electron of read noise at high gain with a full resolution readout speed of 4FPS, ideal for photon-limited conditions such as short exposures and narrow-band imaging.
-
Large Image Buffer: Equipped with a 2GB DDR3 image buffer for smooth data transfer of the entire 60MP sensor, especially important for computers with limited processing power or USB 3.0 support.
-
Improved Full Well Capacity: The back-illuminated CMOS structure allows more light absorption, resulting in higher quantum efficiency and sensitivity.
-
True RAW Data Output: Offers authentic RAW image output without noise reduction or hot pixel removal, preserving the integrity of astronomical images.
-

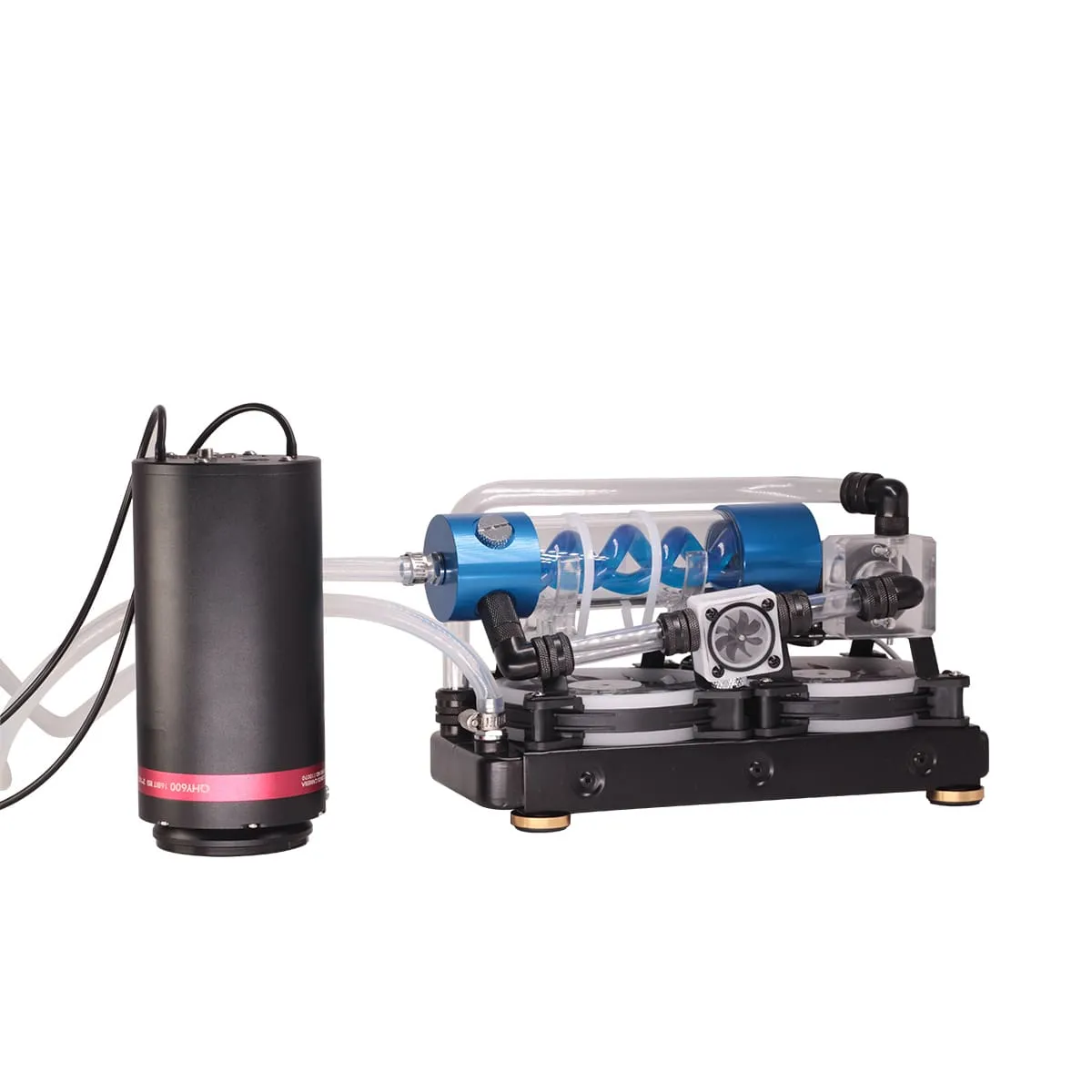

Efficient Cooling & Anti-Dew Technology: Features dual-stage TE cooling and an electric heating board to control dark current noise and prevent dew formation.
-
Robust Sealing Technology: Utilizes silicon gel tube socket design for humidity control within the sensor chamber, ensuring no oil leakage.
-
Diverse Naming Options: The QHY600PH is available in various models tailored for different applications – from Photographic (PH) to Scientific (Pro) grades.
-
USB3.2 Gen1 Type-C Interface: Features a more durable and flexible Type-C interface, enhancing connectivity and longevity.
-
Universal ST-4 Guiding Interface: The QHY5III (Ver.2) cameras come with a universal ST-4 compatible guiding interface for easy replacement.
-
Status Indicator LED: The camera includes a status indicator at the back, assisting in diagnosing camera statuses with different colored lights.
-
Easy Remote Reboot: Designed for remote observatory control, the camera can be rebooted using the 12V power supply without needing to disconnect the USB interface.
Specifications
| Model |
QHY600PH (Photographic Ver.)
QHY600PH SBFL (Short Back Focal Length Ver.) QHY600PH L (Lite Ver.) |
| CMOS Sensor | SONY IMX455 |
| Mono/Color | Both Available (while Mono only with QHY600PH-L) |
| FSI/BSI | BSI |
| Pixel Size | 3.76um x 3.76um |
| Effective Pixel Area | 9576*6388
（9600*6422 with overscan and optically black area) |
| Effective Pixels | 61.17 Megapixels |
| Sensor Size | Full Frame 36mm x 24mm |
| A/D Sample Depth
|
16-bit (0-65535 levels) at 1X1 binning
18-bit at 2X2, 19-bit at 3X3, 20-bit at 4X4 software binning *QHY600 uses the software digital binning for 2*2binning. With digital sum, 2*2binning will be four 16-bit summed then it is 18-bit. |

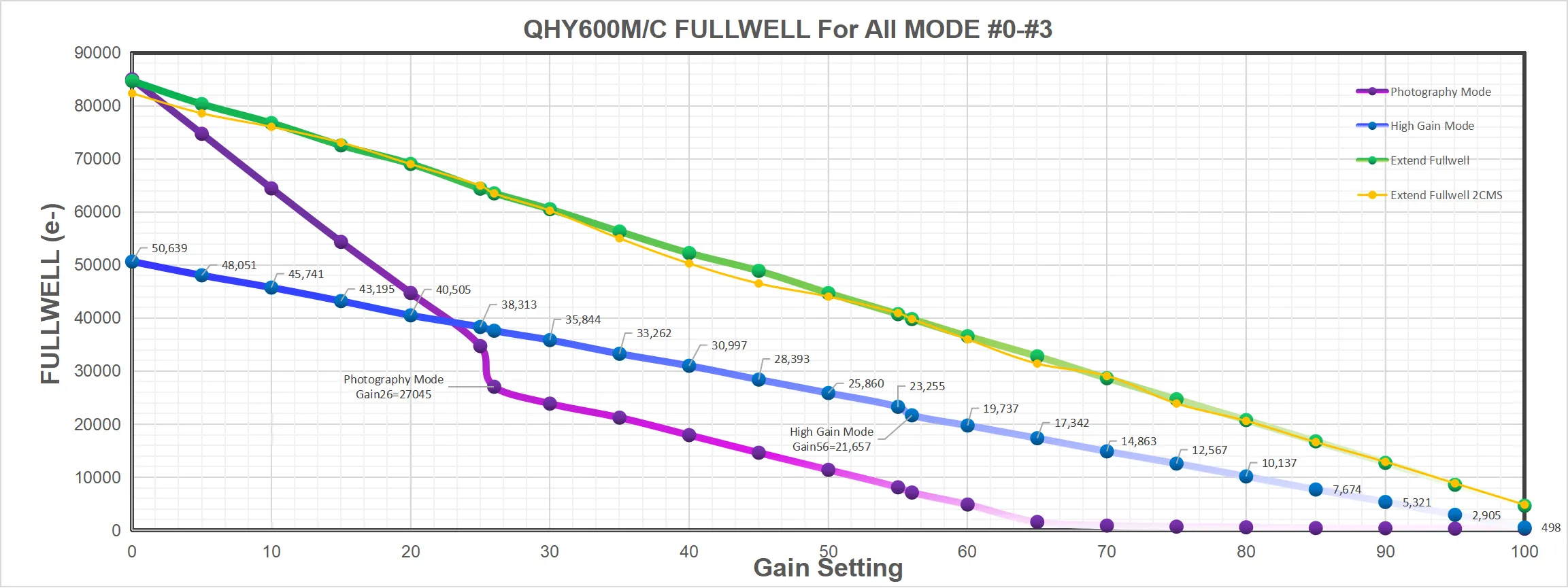

| Full Well Capacity (1×1, 2×2, 3×3) | Standard Mode >51ke- / >204ke- / >408ke- Super Full Well Mode >80ke- / >320ke- / >720ke- |
| Frame Rate | Full Resolution
4.0FPS (8-bit output) ; 2.5FPS (16-bit output) ROI 7.2FPS at 9600×3194, 22.5FPS at 9600×1080, 28FPS at 9600×768, 47FPS at 9600×480, 160FPS at 9600×100 |

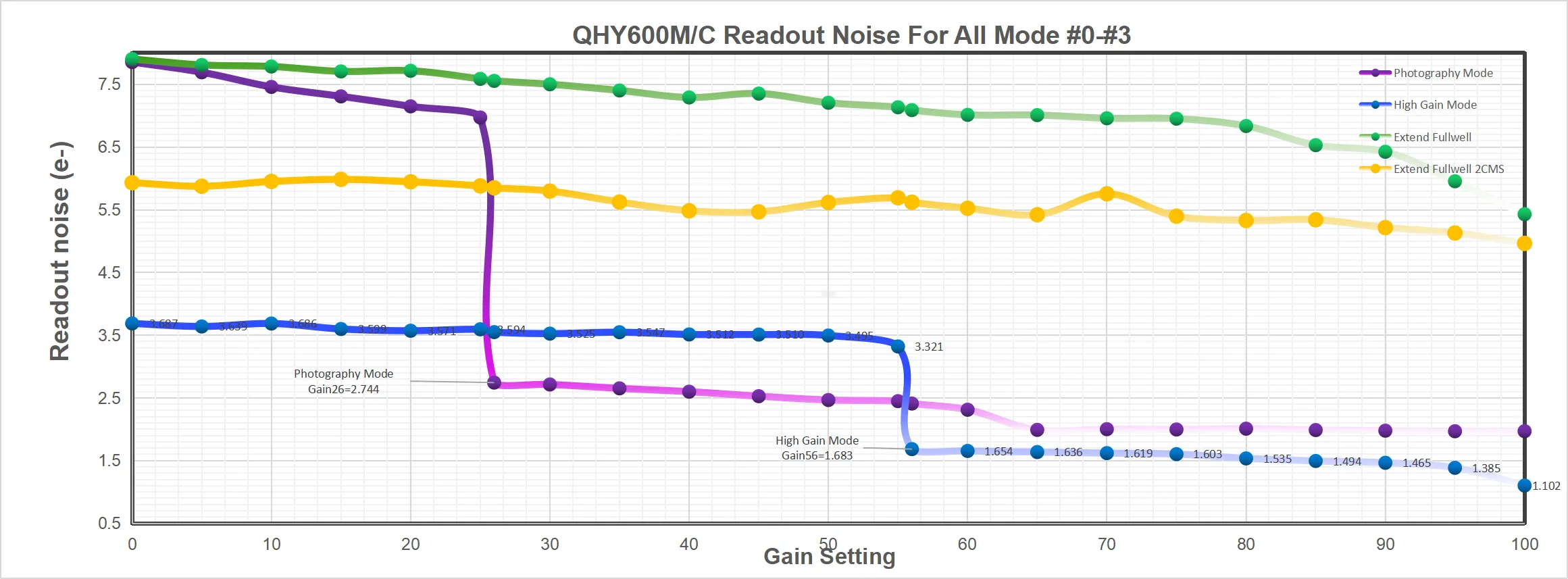

| Readout Noise | 1.0e- to 3.7e- (Standard Mode) |

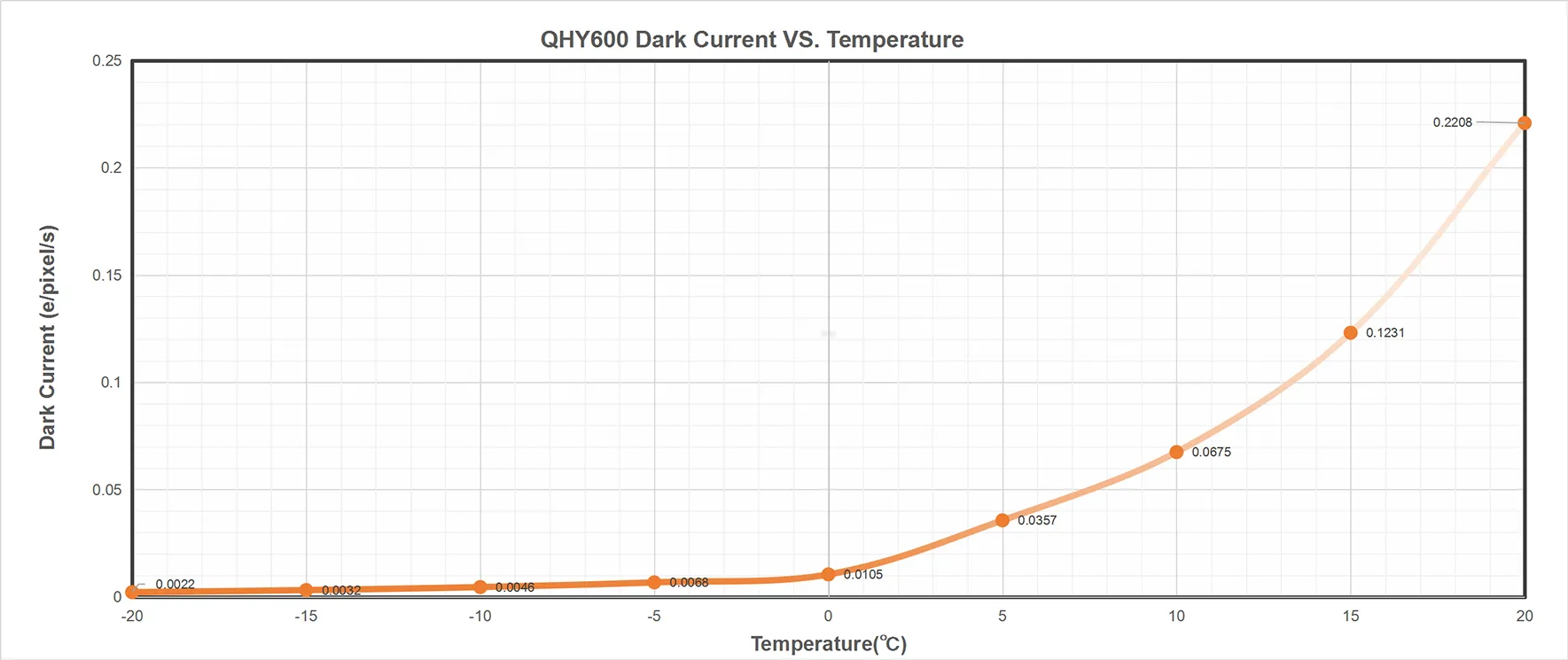

| Dark Current | 0.0022e-/p/s @ -20℃ 0.0046e-/p/s @ -10℃ |
| Exposure Time Range | 40us – 3600sec |

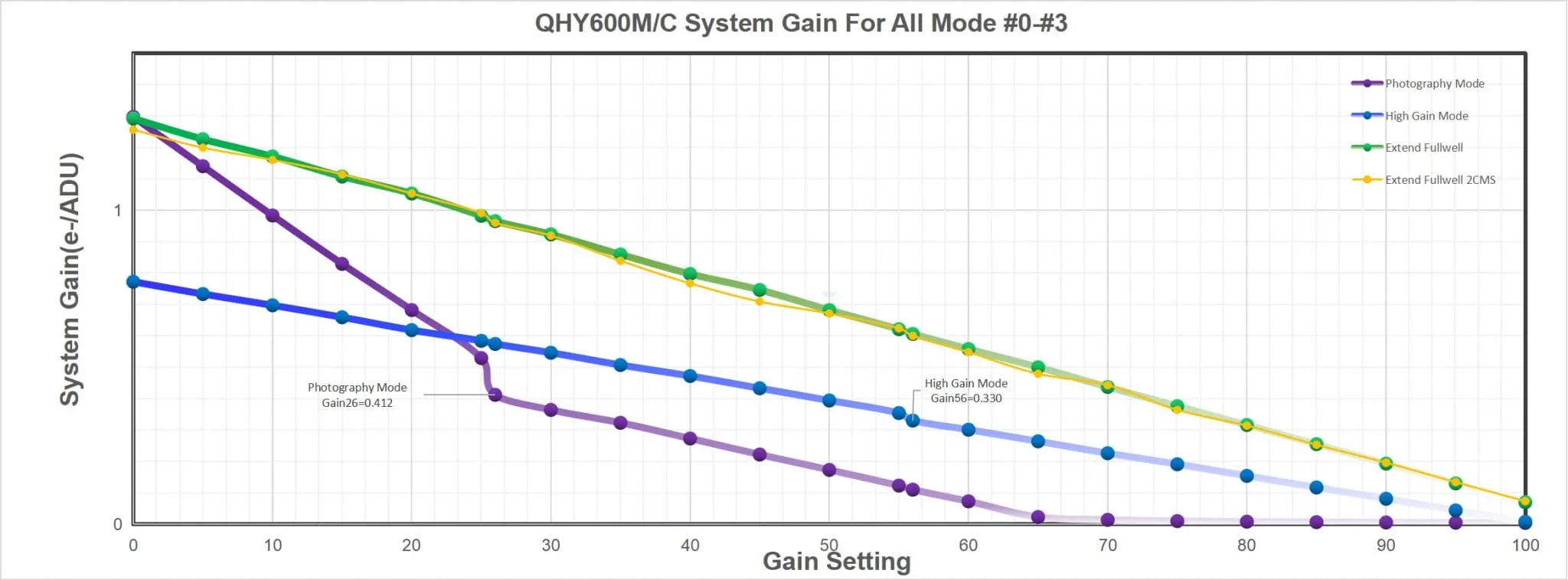

| Unity Gain* | 25 (Extended Full Well Mode) *
*With the improvement of the CMOS technology, the 16bit CMOS camera has been released, like QHY600/268/411/461. For these cameras, even in lowest gain it has beyond the requirement of unit gain (less than 1e/ADU due to sufficient samples) So you can directly set gain 0 as start. Please note QHY600/268C/411/461 has extend full well mode. In this mode you still need to find out the unit gain position. |
| Amp Control | Zero Amplifer Glow |
| Firmware/FPGA remote Upgrade | Supported. Via Camera USB Port |
| Shutter Type | Electric Rolling Shutter |
| Computer Interface | USB3.0 |
| Built-in Image Buffer | PH & PH SBFL Ver.: 2GB DDR3 PH L Ver. : 1GB DDR3 |
| Hardware Frame Sequence Number | Supported |
| Cooling System | Dual Stage TEC cooler: – Long exposures (> 1 second) typically -35℃ below ambient – Short exposure (< 1second) high FPS, typically -30℃ below ambient（Test temperature 20℃） |
| Optic Window Type | AR AR High Quality Multi-Layer Anti-Reflection Coating |
| Anti-Dew Heater | Yes |
| Telescope Interface | M54/0.75 |

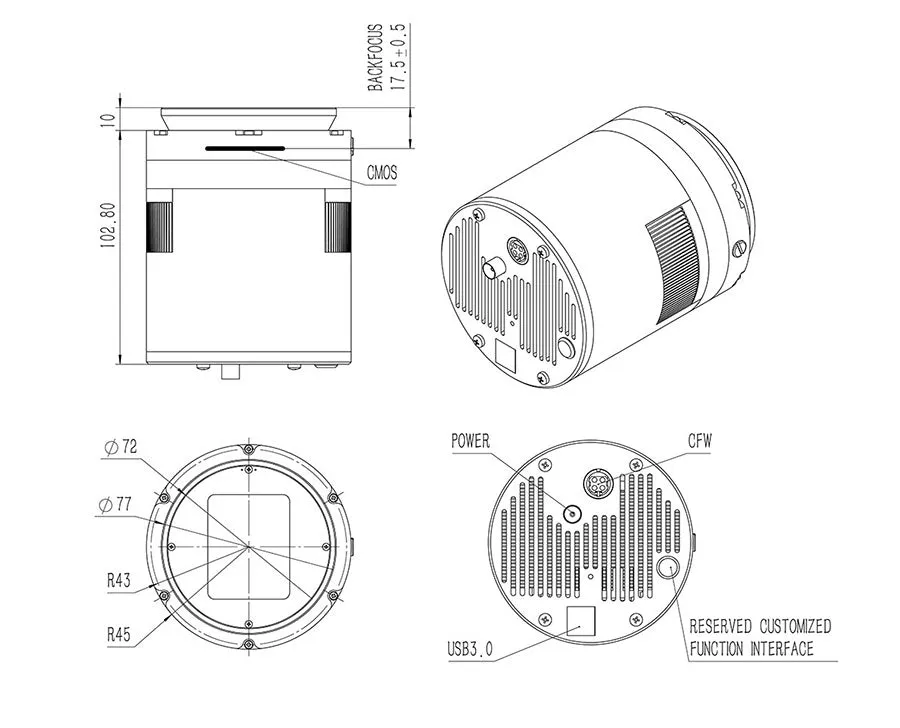

| Back Focal Length | QHY600PH&QHY PH-L: 17.5mm 6mm (CAA)
QHY600SBFL: 14.5mm* *The BFL Consumed equals 12.5mm when connecting QHYCFW. About the defination of “BFL Comsumed” and our adapter system please view: |
| Weigth | PH & PH SBFL Ver.: 850g PH L Ver. : 790g |
| Power | 40W/100% 20W/50% 13.8W/0% |
