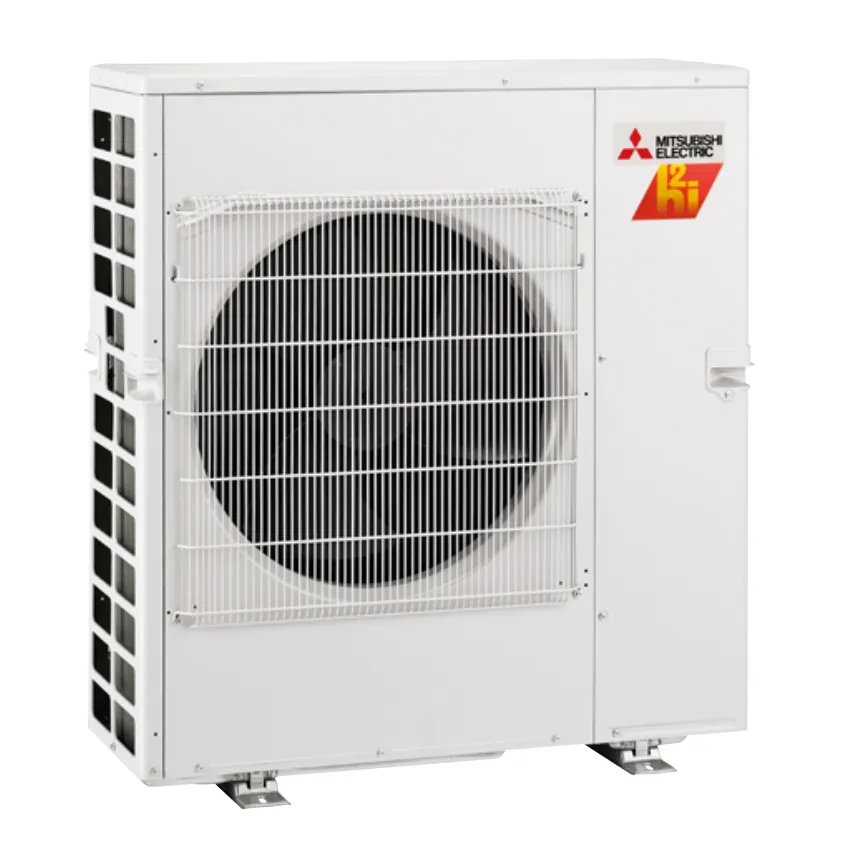

The Mitsubishi 24,000 BTU multi-zone outdoor heat pump (MXZ-3C24NAHZ) is an extremely efficient low-temperature heating and cooling option that can handle three zones.

Mitsubishi's current 24,000 BTU outdoor heat pump model is the MXZ-3C24NAHZ. This specific outdoor unit allows you to connect a wide variety of indoor units that can range up to 18,000 BTU. The MXZ-3C24NAHZ is part of Mitsubishi's M-Series, catering to residential applications. This system is ideal for customers that are looking to cover 2-3 zones in regions that have temperatures that consistently drop below 0 degrees F.

For proper installation, plan for:

1. Line Set - When hooking up indoor units to the MXZ-3C24NAHZ, you'll need refrigerant lines. There can be two different combinations for this outdoor unit: for 6,000-12,000 BTU units and  for 15,000-18,000 BTU units. Our line-sets kits come in different lengths; however, you can cut the copper pipes to fit your application.

1. Disconnect Box & Electrical Whip Kit - The comes in each installation kit. It provides a safe and simple way to connect your outdoor condenser to your homes' electrical panel.

1. Outdoor Condenser Plastic Pad (Optional) - This  provides an even surface, free of debris, on which to place your outdoor condenser. It also comes with snow-risers to provide separation from the ground.

1. Wall Bracket (Optional) - A is a simple and sturdy way to mount your outdoor condensing unit off of the ground and attached to your home.

Specs

• Noise Level: Cooling: 54 Decibels
• Noise Level: Heating: 58 Decibels
• Size W: 37 13/32"
• Size: H: 41 9/32"

• Size: D: 13"
• Weight: 189 lbs
• Electrical: 40 AMP

Certifications

• Energy Star Yes
• ETL Listed Yes
• AHRI Certified Yes
