Product Details
＋

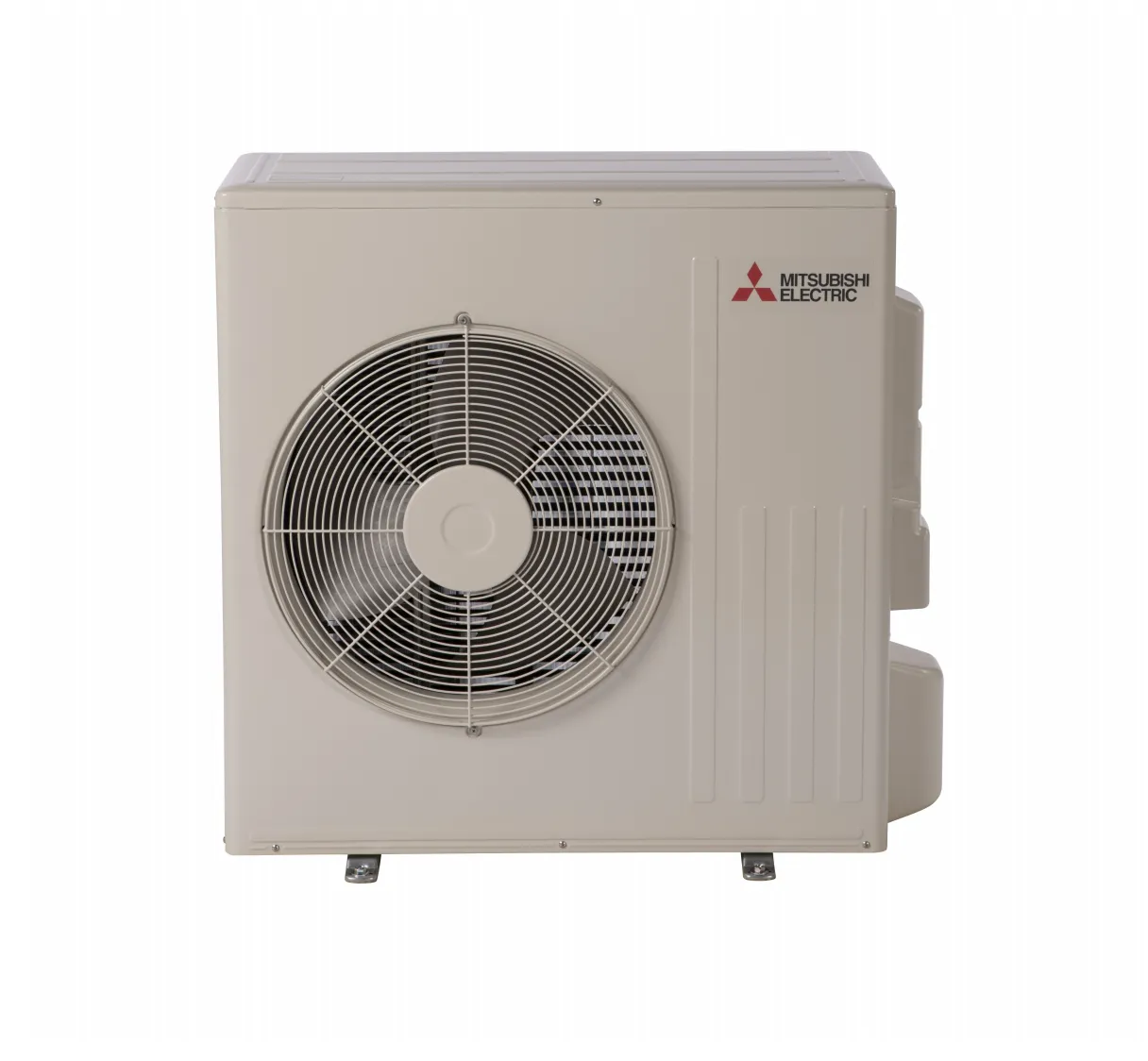

The Mitsubishi 20,000 BTU dual multi-zone outdoor heat pump (MXZ-2C20NA) is an extremely efficient heating and cooling option that can handle two zones.
Mitsubishi's current 20,000 BTU outdoor heat pump model is the MXZ-2C20NA3-U1. This specific outdoor unit allows you to connect a wide variety of indoor units that can range up to 15,000 BTU. The MXZ-2C20NA is part of Mitsubishi's M-Series, catering to residential applications.
For proper installation, plan for:
- Line Set - When hooking up indoor units to the MXZ-2C20NA, you'll need refrigerant lines. They can be two different combinations for this outdoor unit: for 6,000-12,000 BTU units and for 15,000 BTU units. Our line-sets kits come in different lengths; however, you can cut the copper pipes to fit your application.
- Port Adapters - If you are installing 2 15,000 BTU and a 6,000 BTU system, you will need a port adapter for the 15,000 BTU indoor unit because of the difference of refrigerant line-set sizes.
- Disconnect Box & Electrical Whip Kit - The comes in each installation kit. It provides a safe and simple way to connect your outdoor condenser to your homes' electrical panel.
- Outdoor Condenser Plastic Pad (Optional) - This provides an even surface, free of debris, on which to place your outdoor condenser. It also comes with snow-risers to provide separation from the ground.
- Wall Bracket (Optional) - A is a simple and sturdy way to mount your outdoor condensing unit off of the ground and attached to your home.
General Information
- 1.66-Ton Inverter Condenser
- M-Series
- Cooling & Heating
- NO
- 2
- Unit Capacity 20,000 BTU
Package Includes
- MXZ-2C20NA3-U1
Performance
- up to 20,000 BTU
- up to 25,500 BTU
- Up to 20.0
- EER2 Up to 12.7
- Up to 10.0
- 5 F
- 14 F
- up to 850 sq ft
Specs
- Noise Level: Cooling: 50 dB(A)
- Noise Level: Heating - 54 dB(A)
- Size W: 33 1/16"
- Size: H: 27 11/16"
- Size: D: 13"
- Weight: 126 lbs
- Pre-Charged: 5 lbs 15 oz
- Electrical: 20 AMP
Certifications
- Yes
- Yes
- Yes
